N-VCF (Narrow Field of View Type)

Effcetive for view control and light path control as sensors.

N-VCF is a narrower filed of view range than the standard VCF. It is effective for applications requiring a narrow field of view such as sensors and fingerprint authentication.

[Industrial field]

Sensors

Performance

N-VCF provides a narrower field of view (20° to 30°) than the standard VCF.

［Applications］

Sencors
Fingerprint authentication

Characteristics

"N-VCF" has a narrower field of view (view angle) than standard VCF (30°), and even narrower (20°) SN-VCF (ultra narrow field of view type) is available.

Specifications

VCF is laminated the front and back transparence resin film to the microlouver film which placed transparence silicone and black ones in turn.

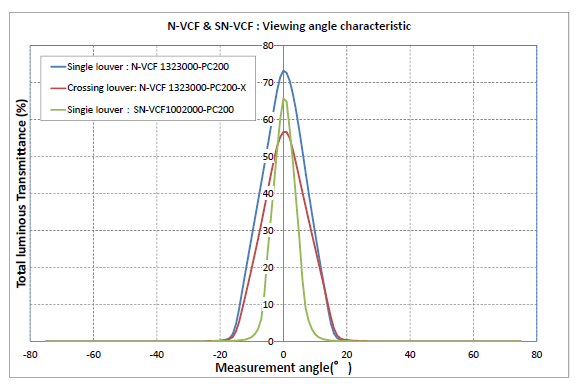

Field of view range Characteristic

Catalog

Download(Narrow)

Download(Special Narrow)

Back to View/light path control film

Please feel free to contact us if you have any inquiries regarding our products.
