Creating a wealthy future by making full use of molding and composite technologies



We propose unique products for use in diverse fields making full use of our printing and compounding technologies, based on materials and analysis technologies for silicone rubber, and other technologies.

  • LS-α Type (development product) 2020/07/16 LS-α Type (development product)

    This is an anisotropic conductive rubber connector for inspection by connecting electrode of the semiconductor package and electrode of circuit board, or the electrode between circuit boards electrically.

    • "Shin-Etsu Inter-Connector"

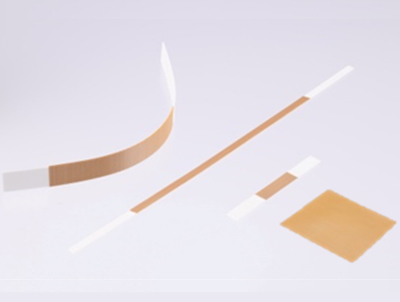

  • MT series 2020/07/15 MT series

    This sheet type connector for inspection is anisotropic conductive sheet type, which consists of silicone rubber and gold-plated metal wires embedded densely into it.

    • "Shin-Etsu Inter-Connector"

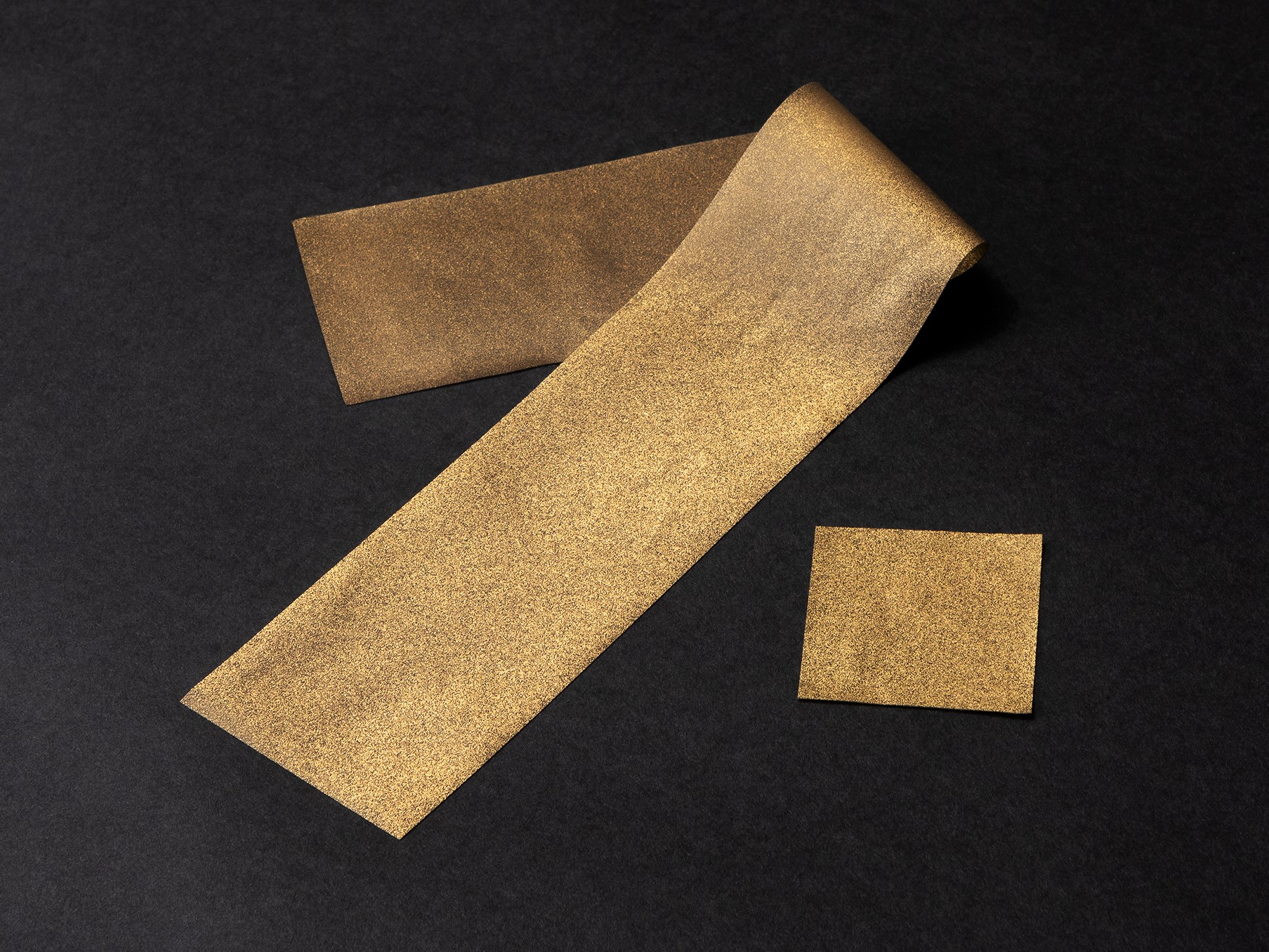

  • MAF type 2020/07/14 MAF type

    This is a sheet type interconnector which consists of silicone rubber and metal fibers oriented densely into thickness direction of silicone.

    • "Shin-Etsu Inter-Connector"
  • GB-Matrix type 2020/07/13 GB-Matrix type

    This is a sheet type interconnector which consists of silicone rubber and gold-plated metal wires oriented densely into thickness direction of silicone.

    • "Shin-Etsu Inter-Connector"
  • GB-E type 2020/07/12 GB-E type

    This is an interconnector which consists of gold-plated metal wires arranged with fine pitch whose both sides are supported by silicone rubber.

    • "Shin-Etsu Inter-Connector"
  • GB-U type 2020/07/11 GB-U type

    This is an interconnector which consists of U-shaped insulating sponge silicone rubber and gold-plated metal wires arranged at fine pitch on the surface.

    • "Shin-Etsu Inter-Connector"
  • MS type 2020/07/10 MS type

    This is a zebra-type interconnector which consists of conductors including silver particle and insulating silicone rubber arranged alternately.

    • "Shin-Etsu Inter-Connector"
  • AF type 2020/07/09 AF type

    This is a sheet type interconnector which consists of silicone rubber and conductive carbon fibers embedded into it.

    • "Shin-Etsu Inter-Connector"
  • S type 2020/07/08 S type

    This is a zebra-type interconnector which consists of conductive silicone rubber and insulated silicone rubber arranged alternately.

    • "Shin-Etsu Inter-Connector"
  • SS type 2020/07/07 SS type

    This is a zebra-type interconnector which consists of conductive silicone rubber and insulated silicone rubber arranged alternately and both sides of the rubber are supported by insulating silicone rubber with low-hardness.

    • "Shin-Etsu Inter-Connector"
  • SG type 2020/07/06 SG type

    This is a zebra-type interconnector which consists of conductive silicone rubber and insulated silicone rubber arranged alternately and both sides of the rubber are supported by insulating sponge silicone rubber.

    • "Shin-Etsu Inter-Connector"
  • SP type 2020/07/05 SP type

    This is a zebra-type interconnector which consists of conductive silicone rubber and insulated silicone rubber arranged alternately and both sides of the rubber are supported by insulating silicone rubber with low hardness. The conductive resistance is lower compared with SS and SG type.

    • "Shin-Etsu Inter-Connector"
  • SEC type 2020/07/04 SEC type

    This is a zebra-type interconnector whose conductive silicone rubber is low resistance.

    • "Shin-Etsu Inter-Connector"
  • SX type 2020/07/03 SX type

    This is a zebra-type interconnector whose conductive silicone’s resistance is lower than SEC’s one.

    • "Shin-Etsu Inter-Connector"
  • DM type 2020/07/03 DM type

    This is a cushion material made of silicone which is suitable for using as spacer or packing.

    • "Shin-Etsu Inter-Connector"
  • JC type 2020/07/02 JC type

    This type is an anisotropic conductive heat seal connector which has carbon conductive lines.

    • "Shin-Etsu Inter-Connector"

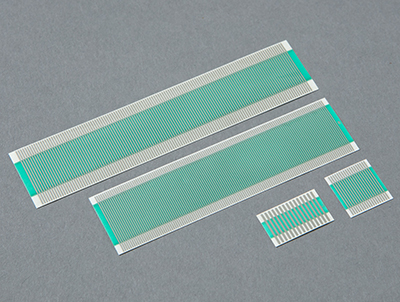

  • JS type 2020/07/01 JS type

    This type is an anisotropic conductive heat seal connector which has silver and carbon conductive lines.

    • "Shin-Etsu Inter-Connector"
