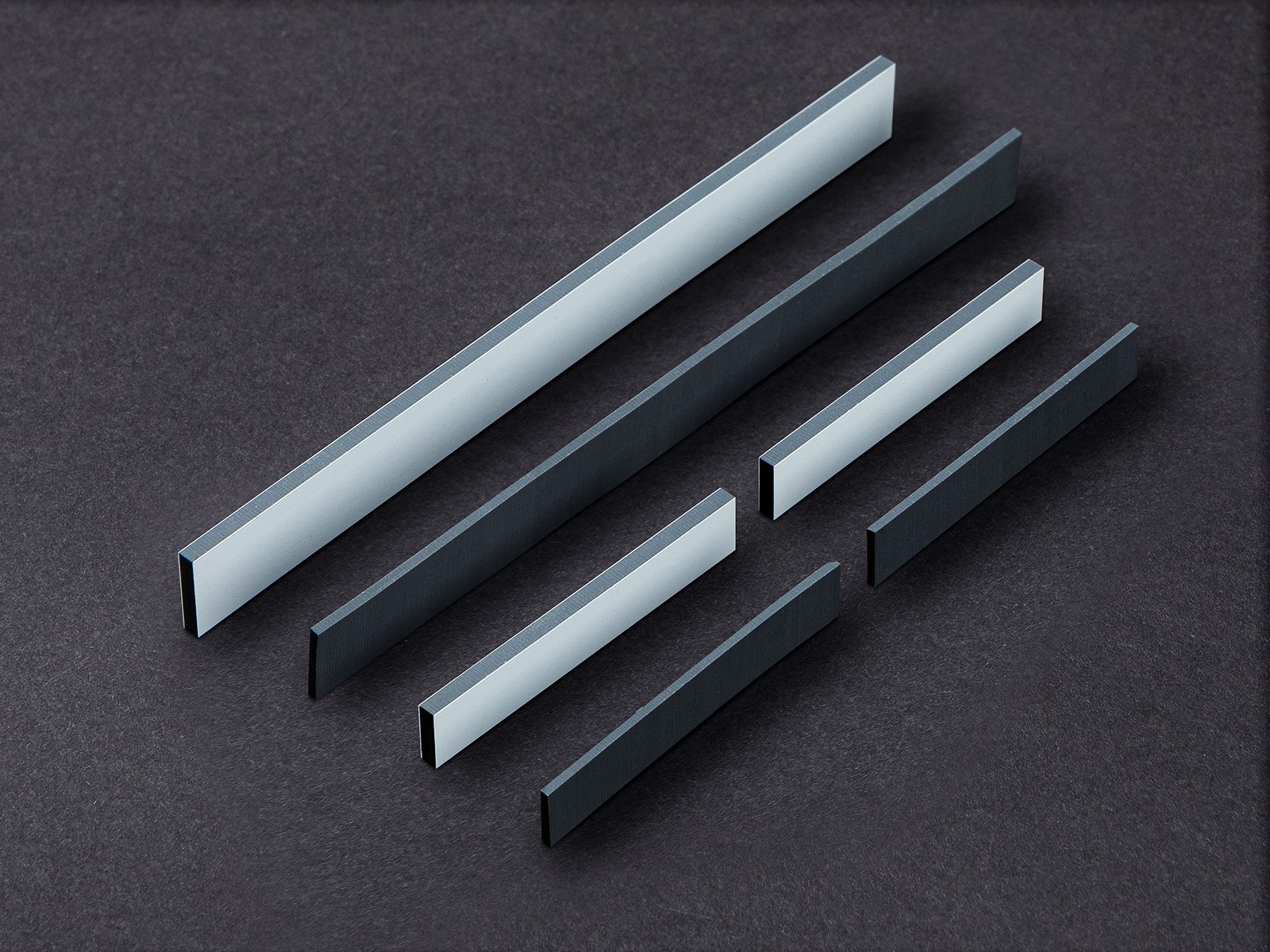

This is a zebra-type interconnector which consists of conductive and insulating silicone rubber arranged alternately.

This type is suitable for connection stability, and is used as connector between LCD and printed circuit board or PCB, especially electronic parts that cannot be soldered.



[Industrial field]

Automobile, Information device, Home electric appliance

Performance

Because of arranging conductive silicone rubber and insulated silicone rubber alternately, this type is possible to connect randomly.



[Applications]

  • Connection between LCD and PCB (Automobile products, watches,digital cameras, electronic dictionaries, industrial equipments)

Characteristics

  • This is a high reliability compression type connector and it achieves random connection because conductive silicone rubber and insulated silicone rubber are arranged alternately.

Specifications

  • Conductive silicone rubber and insulated silicone rubber are arranged alternately.

Introduction video of "Shin-Etsu Inter-Connector"

Dimension and tolerance

Item Unit 0.05P type 0.10P type 0.18P type 0.25P type
Pitch P mm 0.05±0.03 0.10±0.04 0.18±0.05 0.25±0.05
Length L mm 1.0~5.0±0.1
70.1~120.0±0.4

5.1~30.0±0.2
120.1~200.0±0.6

30.1~70.0±0.3
200.1~300.0±0.8
Height H mm 0.8~5.0±0.1  5.1~25.0+0.15/-0.1
Width without coat 0.2~5.0±0.08
Width with coat W mm 0.3~5.1±0.1
Width of insulation coat Wi mm 0.05±0.03

※HW/2

Outline dimensions

Basic properties

Item Component Unit 0.05P type 0.10P type/0.18P type/0.25P type
Specific gravity     Insulator
Conductor
Insulated both sides		 　 1.15
1.15
1.15		 1.15
1.25
1.15
Shore hardness A Insulator
Conductor
Insulated both sides		 ISO7619
(type A)		 65~73
60~65
65~73		 65~73
63~67
65~73
Compression set     ※ % 15~20 15~20
Volume resistivity Insulator
Conductor
Insulated both sides		 Ω/cm 1 x 10~{14}
1.3
1 x 10~{14}		 1 x 10~{14}
3~6
1 x 10~{14}
Dielectric breakdown voltage Insulator
Insulated both sides		 kV/mm 23~27
20~23		 23~27
20~23
Insulation resistance (500V DC) ※ MΩ 1 x 10~{3}≦ 1 x 10~{3}≦
Operating temperature range 　 ºC -25~85 -25~85

※The test is carried out with Shin-Etsu's own method.

Compression curves

※Sample size
0.10P x 20.0L x 2.4H x 2.0W

※Sample size
0.10P x 20.0L x 2.4H x 2.0W


※Electrode used
0.6 width gold-plated vs.
no pattern processed gold-plated
No holder

Note

Every item or numerical value indicated herein is measured by Shin-Etsu and out of guarantee.
The quality of the connector, which has been already assembled, is out of guarantee.
Please make sure to see about the purpose/conditions of use and practice your own test. Industrial ownership like patent doesn't guarantee the usage of the connector.
