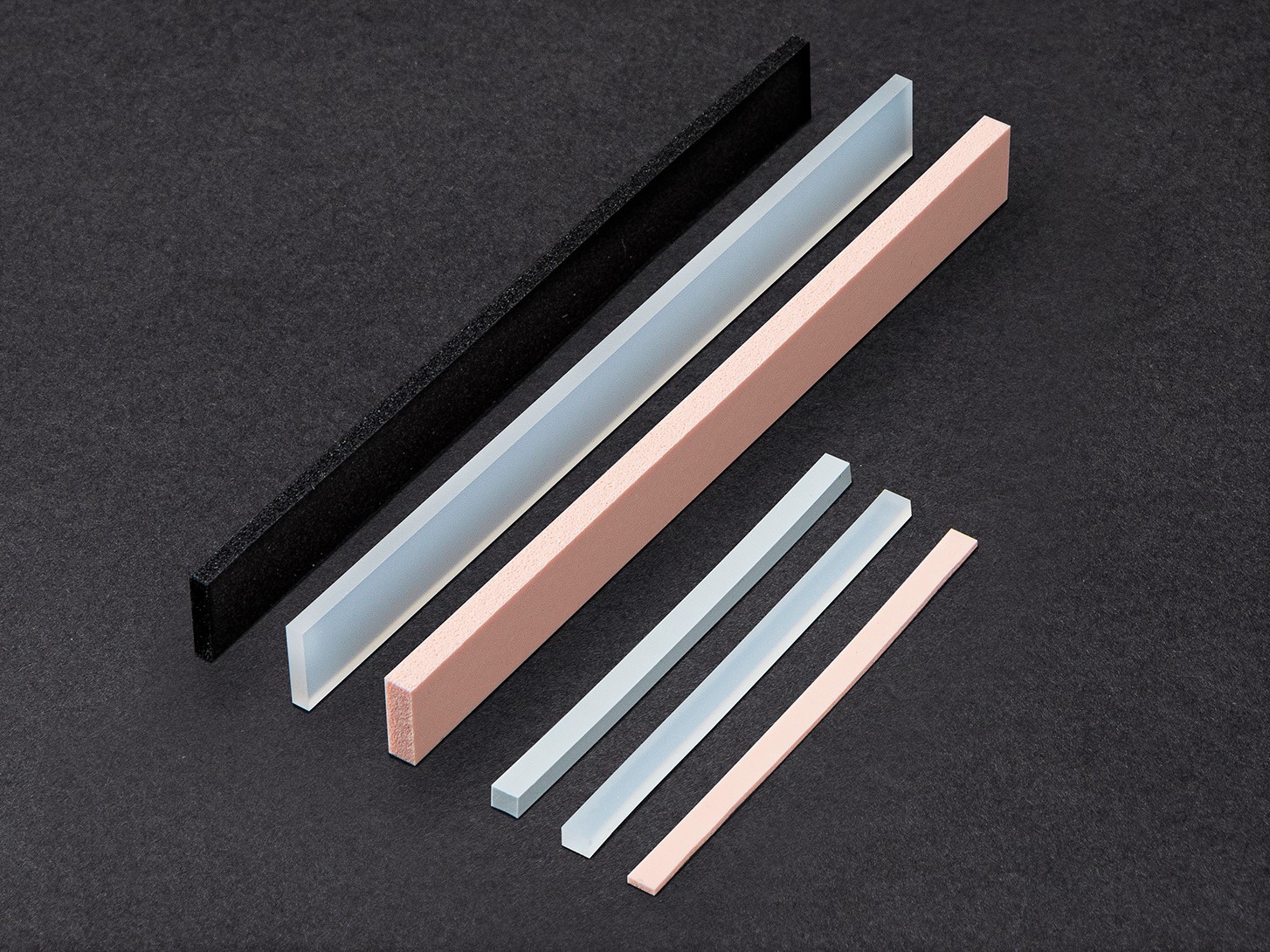

This is a cushion material which is suitable for using as spacer or packing.



[Industrial field]

Automobile, Information device, Home electric appliance

Performance

We have solid and sponge type and this type achieves combination with different forms and PET sheet material, and correspondence of composite such as specification of adhesive tape.



[Applications]

  • Cushion for LCD
  • Spacer for automotive and protection against dusts and drops of water

Characteristics

  • It has fine cushioning and compression set by characteristics of silicone.
  • It is superior in resistance of heat, cold, vibration and impact, and contribute to waterproof dust proofing characteristics.
  • It adjust our inter-connector because it is same material as support material of inter-connector.

Specifications

  • Solid type and sponge type silicone rubber
  • Adhesive tape can be put on.

Dimension and tolerance

Item Unit SS-20 SS-50 W-70 SPH-151
Colour tone Translucent, Gray, Black Translucent, Gray, Black White, Gray White
Shore hardness A 20º 50º 70º 8º
Silicone rubber Solid insulative Solid insulative Solid insulative Sponge insulative
Remarks Counterpart of SS type
Length (L) mm 1.0~370.0 1.0~370.0 1.0~290.0 1.0~370.0
Height (H) mm 1.0~250.0 1.0~250.0 1.0~250.0 1.0~250.0
Width (W) mm 0.2~6.0 0.2~6.0 0.3~5.0 0.4~4.0

Item Unit SPO-951 UL-50 NA-50B VO-50
Colour tone Pink, Black Light Gray Gray Black
Shore hardness A 20º 50º 50º 50º
Silicone rubber Sponge insulative Sillicone rubber Sillicone rubber Sillicone rubber
Remarks Counterpart of SG type Flame resistance Tape Tape
Length (L) mm 1.0~370.0 1.0~370.0 1.0~400.0 1.0~400.0
Height (H) mm 1.0~250.0 1.0~250.0 1.0~250.0 1.0~250.0
Width (W) mm 0.4~6.0 0.2~6.0 0.1~0.5 0.1~0.5

※ The dimensional tolerance will vary according to material quality. Please contact us for more information.
※ HW/2


Shin-Etsu Inter-Connector has been registered in European Community, TM No. 000299016, and in the United States of America, TM No. 2078941.

Outline dimensions

Basic properties and material tolerances

Item Unit SS-20 SS-50 W-70 SPH-151
Specific gravity   1.10 1.15 1.20 0.6
Tensile strength (Mpa) 2≦ 6.0≦ 6.8≦ 1.8≦
Elongation (%) 300~400 250~400 180~250 350≦
Shore hardness A   20±5 50±5 70±5 8±5
Compression set (%) 5~15 5~15 5~15 30≧
Volume resistivity (MΩ) 8 x 10~{11} 8 x 10~{11} 1 x 10~{12} 1 x 10~{9}
Insulation resistance (Ω) 10~{9}≦ 10~{9}≦ 10~{9}≦ 10~{9}≦
Operating temperature range (ºC) -25~85 -25~85 -25~85 -25~85
Dielectric breakdown voltage kV/mm 23~27 23~27 23~27 20~25
Item Unit SPO-951 UL-50 NA-50B VO-50
Specific gravity   0.7 1.50 1.15 1.30
Tensile strength (Mpa) 2.8≦ 4.5≦ 6.0≦ 4.5≦
Elongation (%) 250≦ 350≦ 250~400 300≦
Shore hardness A   20±5 50±5 50±5 50±5
Compression set (%) 10~20 40≧ 5~15 40≧
Volume resistivity (MΩ) 1 x 10~{9} 1 x 10~{12} 8 x 10~{11} 1 x 10~{12}
Insulation resistance (Ω) 10~{9}≦ 10~{9}≦ 10~{9}≦ 10~{9}≦
Operating temperature range (ºC) -25~85 -25~85 -25~85 -25~85
Dielectric breakdown voltage kV/mm 20~25 23~27 23~27 23~27

Note

Every item or numerical value indicated herein is measured by Shin-Etsu and out of guarantee.
The quality of the connector, which has been already assembled, is out of guarantee.
Please make sure to see about the purpose/conditions of use and practice your own test. Industrial ownership like patent doesn't guarantee the usage of the connector.
