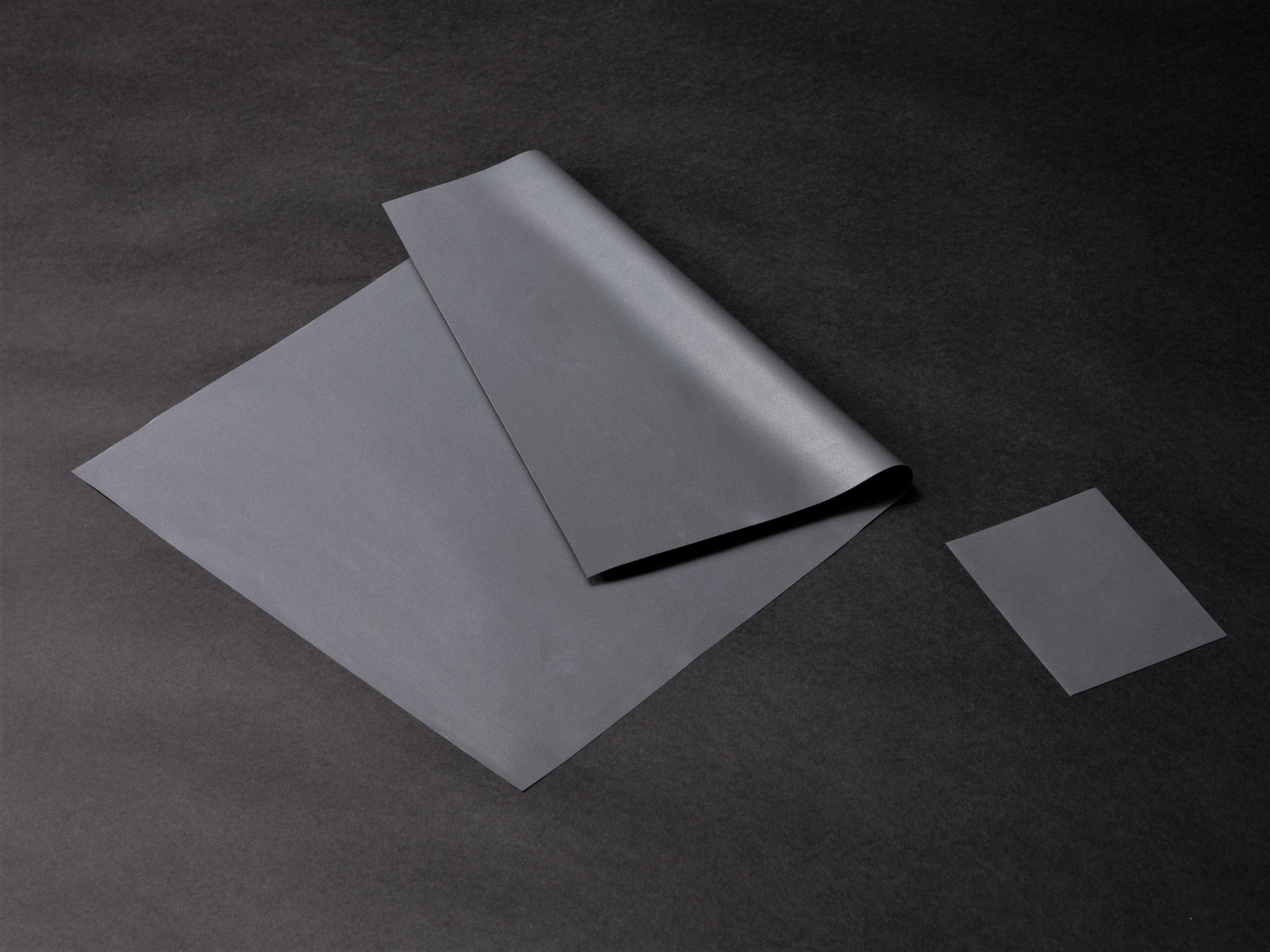

This connector for inspection is anisotropic conductive sheet type, which consists of silicone rubber and conductive carbon fibers embedded densely into it.
[Industrial field]
Electronic Components, Semiconductor, Information devices, Automobile
Electronic Components, Semiconductor, Information devices, Automobile
[Applications]
- Connection between several devices and PCB
- Inspection for electrical parts and semiconductor devices
- This connector is anisotropic conductive sheet type, which consists of insulated silicone rubber and conductive carbon fibers embedded densely into it.
- It is extremely thin, so it achieves connection of counter electrode with no gap. Also, it achieves free shape by punching apparatus.
- Anisotropic conductive sheet carbon fibers into silicone.
Dimension and tolerance
|
※ AF-type: Over 170L x 170W available on request.
Shin-Etsu Inter-Connector has been registered in European Community, TM No. 000299016, and in the United States of America, TM No. 2078941.
Outline dimensions
Basic properties
| Item | Units | Values |
|---|---|---|
| Shore hardness A | HS (JIS A) | 65~73 |
| Compression set *1) | % | 30~35 |
| Contact resistance *2) | Ω/mm~{2} | ≦10 |
| Insulation resistance (DC 500V) *3) | MΩ | 1 x 10~{3}≦ |
| Dielectric breakdown voltage | kV/mm | 23~27 |
| Operating temperature range | ºC | -25~85 |
※1 3000 hrs, test at room temperature
※2 by 4-terminal method (current applied 1-10mA), calculated by minimum electrode's area of connection characteristics.
※3 DC 500 V is charged at the area between minimum electrodes of connection characteristics (as stated in the annexed paper).
Compression load-compressibility curves
Sample size:
0.20t x 10 x 50
Resistance-electrode area curves
0.2mm-width AF type is used.
(Measured by gold-plated electrode)
Note
Every item or numerical value indicated herein is measured by Shin-Etsu and out of guarantee.
The quality of the connector, which has been already assembled, is out of guarantee.
Please make sure to see about the purpose/conditions of use and practice your own test. Industrial ownership like patent doesn't guarantee the usage of the connector.
