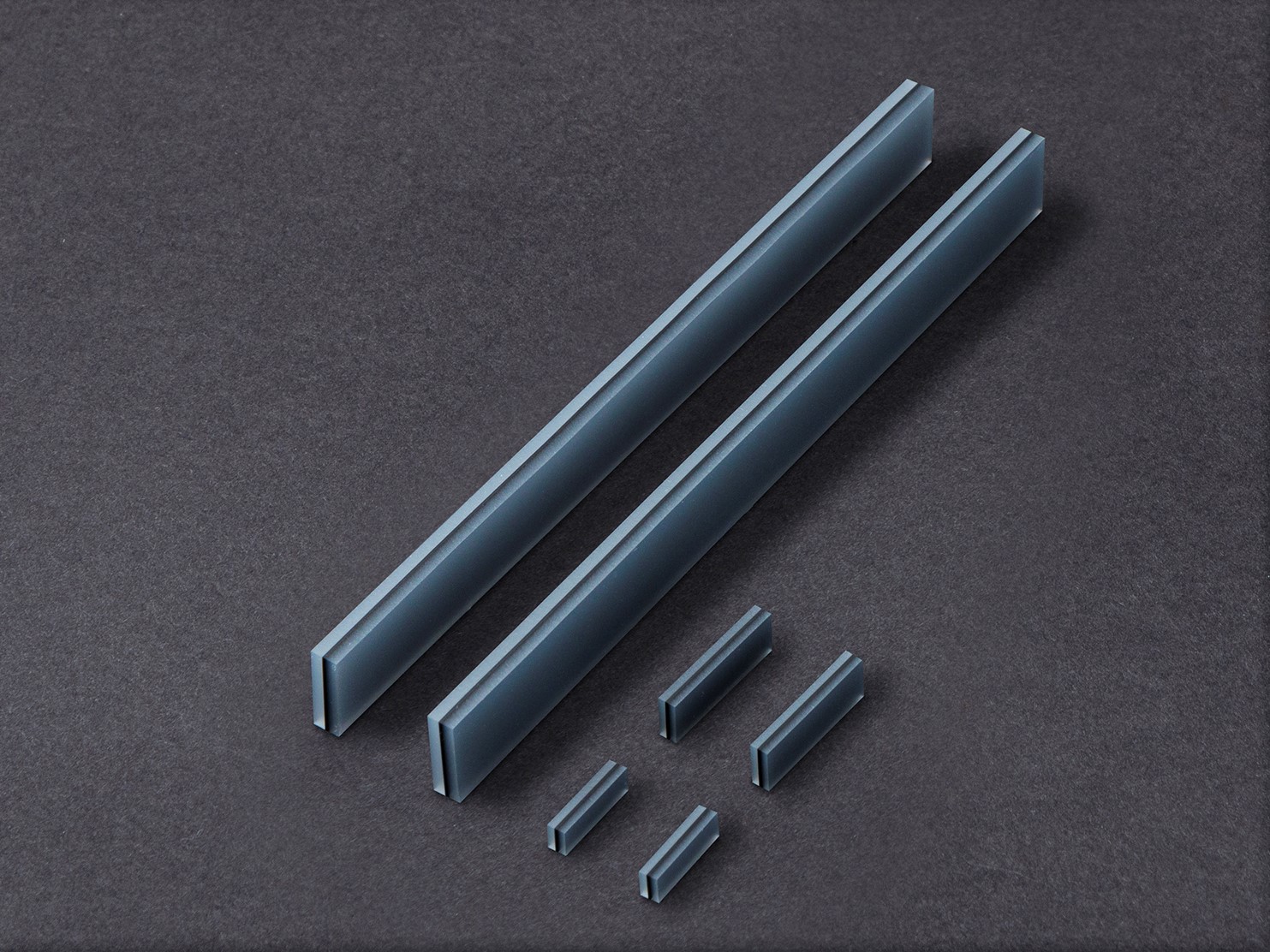

This is a zebra-type interconnector which consists of conductive silicone rubber and insulating silicone rubber arranged alternately and both sides of  the rubber are supported by insulating silicone rubber with low hardness. The conductive resistance is lower compared with SS and SG type.

This type is suitable for connection stability, and is used as connector between LCD and printed circuit board or PCB, especially electronic parts that cannot be soldered.



[Industrial field]

Automobile, Information device, Home electric appliance

Performance

Because of arranging conductive silicone rubber and insulated silicone rubber alternately, this type is possible to connect randomly. Both sides of this connector are supported by isolated silicone rubber which has low-hardness.



[Applications]

  • Connection between LCD and PCB (Automobile products, watches,digital cameras, electronic dictionaries, industrial equipments)

Characteristics

  • This is a high reliability compression type connector and it achieves random connection because conductive silicone rubber and insulated silicone rubber are arranged alternately.
  • The conductive resistance is lower compared with SS and SG type.

Specifications

  • Both sides of the rubber connector which consists of arranging conductive silicone rubber and insulated silicone rubber alternately are supported by insulated silicone rubber with low-hardness.

Dimension and tolerance

Item Unit 0.05P type 0.10P type
Pitch P mm 0.05±0.03 0.10±0.04
Length L mm 2.0~20.0±0.15
20.1~90.0±0.65%
90.1~150.0±0.6

150.1~200.0±0.8
200.1~275.0±1.0
Height H mm 1.0~5.0±0.1

5.1~20.0+0.15/-0.1
Width W mm 1.2~2.3± 0.1

2.4~4.0±0.15
Width of conductive layer Z mm 0.3±0.05 (standard)

0.6±0.05 (secondary standard)

※H≧W/2

Outline dimensions

Basic properties

Item Component Unit 0.05P type 0.10P type
Specific gravity Insulator
Conductor
Edge insulation part
  1.15
1.15
1.05
1.15
1.15
1.05
Shore hardness A Insulator
Conductor
Edge insulation part
ISO7619
(type A)
65~73
60~65
20~25
65~73
60~65
20~25
Compression set % 15~20 12~18
Volume resistivity Insulator
Conductor
Edge insulation part
Ω/cm 1 x 10~{14}
1.3
8
 x 10~{13}
1 x 10~{14}
1.3
8
 x 10~{13}
Dielectric breakdown voltage Insulator
Edge insulation part
kV/mm 23~27
23~27
23~27
23~27
Insulation resistance (500V DC) 1 x 10~{3} 1 x 10~{3}
Operating temperature range   ºC -25~85 -25~85

※The test is carried out with Shin-Etsu's own method.

Compression curves

※Sample size
0.10P x 50.0L x 5.0H x 2.6W x 0.3Z

※Sample size
0.05/0.10P x 50.0L x 5.0H x 2.6W x 0.3Z


※Electrodes used
0.4mm-width gold-plated vs.
no pattern processed gold plated
No holder

※Sample size
0.05/0.10P x 50.0L x 2.6W x 0.3Z


※Electrodes used
0.4mm-width gold-plated vs.
no pattern processed gold-plated
No holder

Note

Every item or numerical value indicated herein is measured by Shin-Etsu and out of guarantee.
The quality of the connector, which has been already assembled, is out of guarantee.
Please make sure to see about the purpose/conditions of use and practice your own test. Industrial ownership like patent doesn't guarantee the usage of the connector.
