『Shin-Etsu Polyca Tough Heat ray cut』

(JIS certification JIS K 6735)
Creates a gentle environment by cutting heat rays (near infrared rays) from sunlight.

『Shin-Etsu Polyca Tough Heat ray cut』

(JIS certification JIS K 6735)
Creates a gentle environment by cutting heat rays (near infrared rays) from sunlight.

[Industrial field]

Construction, Civil engineering

Performance

[Applications]

Carport

Balcony

Storeroom

Snow fence

Bus stop

Factory roof

etc.

Characteristics

A highly functional corrugated sheet that has a heat ray shielding effect in addition to the original toughness of polycarbonate. It suppresses the temperature rise of the part where the transmitted light hits and is also effective as a measure against ultraviolet rays. The heat ray absorption type (smoke gray, smoke bronze, smoke amber frost) is suitable for lighting, and the heat ray reflection type (super milk) is suitable for light shielding.

Test method：
Using a tester as shown above, irradiate an infrared lamp for a fixed time (20 min) and measure the temperature change of the thermocouple installed on the black panel.

※Each data is a representative value measured by us, not a guaranteed value.

Specification table

（Unit：mm）

	Color	Thickness	Width	Depth	Number of corrugated waves (reference)	Effective width	Length	Number of packages
32nami Fireproof certified product	・Smoke Gray ・Smoke Bronze ・Smoke Amber Frost ・Super Milk	0.7	655	9	20.5	575	1,820 2,120 2,420 2,730 3,030	10

Color variations

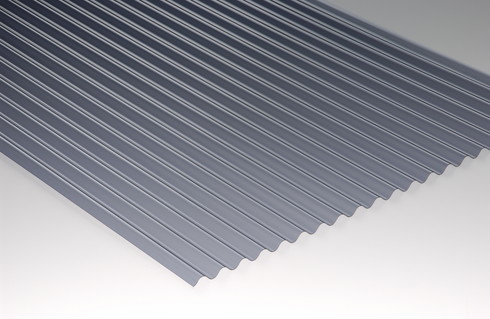

Smoke Gray

Smoke Bronze
Smoke Amber Frost

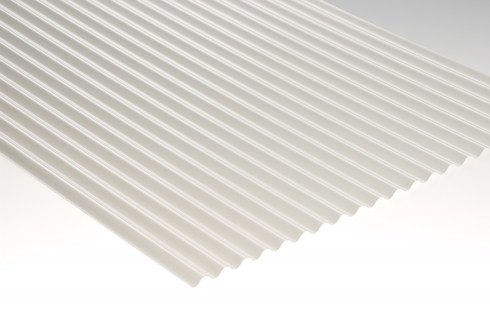

Super Milk
