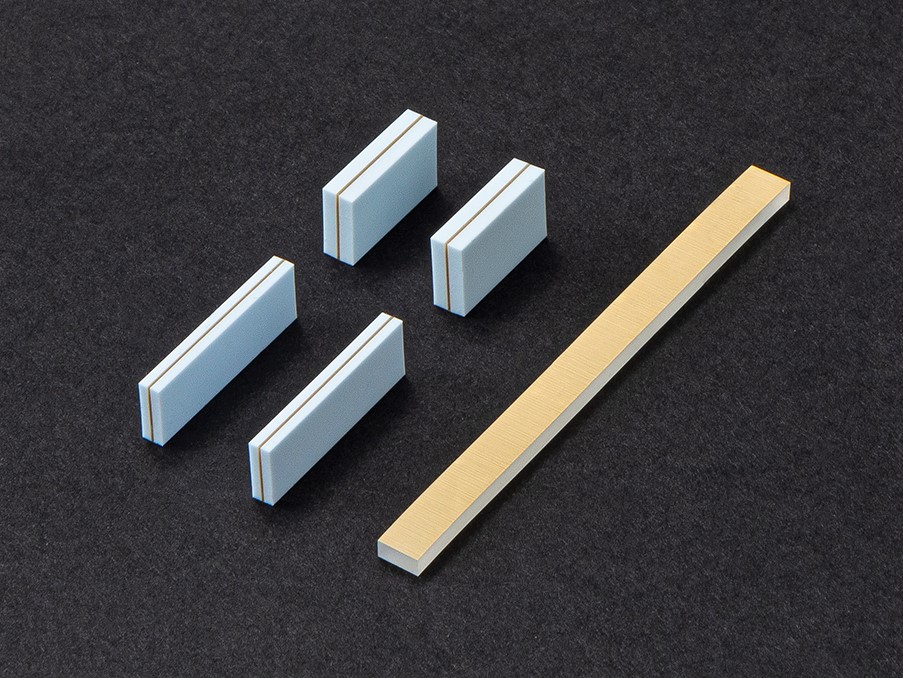

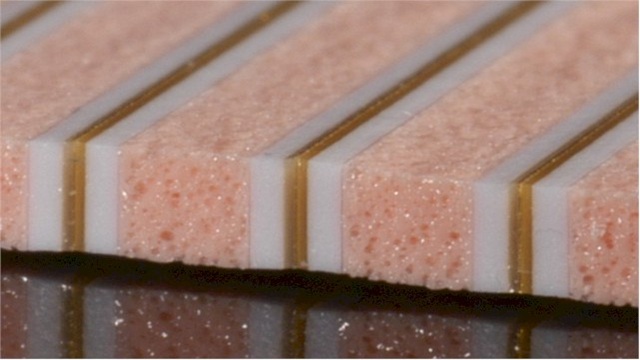

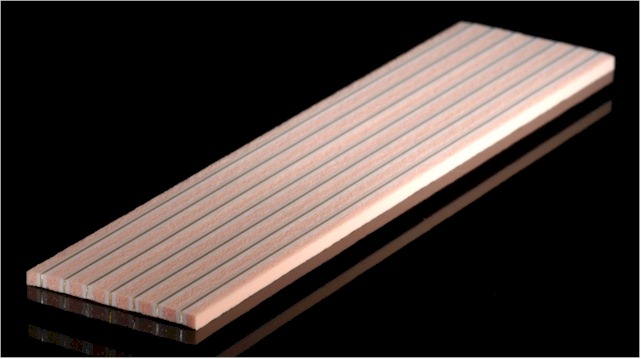

This is an interconnector which consists of gold-plated metal wires arranged with fine pitch and supported both sides of silicone rubber.
It has excellent connection stability and is suitable for board-to-board connections and connections of electronic components that cannot be soldered or that are not heat resistant.



[Industrial field]

Watch, Mobile device, POS, Automobile

Performance

  • Fine metal wires, that are used as conductive elements, make the stable connection with low resistance. It is suitable for connecting board-to-board and electronic component to a board as an alternative to soldering.
  • The flexibility of silicone rubber supporting fine metal wires provides excellent absorption of dimensional changes between boards, excellent reliability, and superior resistance to vibration and shock.



[Applications]

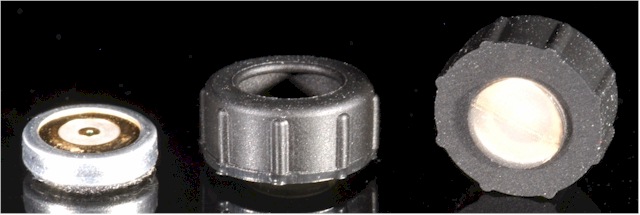

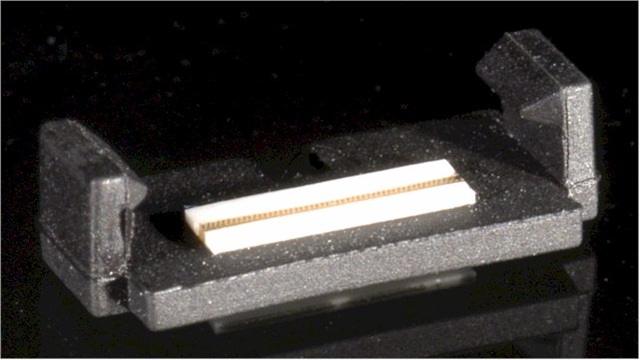

  • Connection of devices（Speakers, Microphones, etc.）to PCB
  • Connection of board-to-board
  • Anti-Tamper Switch

Characteristics

  • Just compressing and holding the connector between the electrodes can save space in the connections and make the devices smaller and thinner.
    　・The connector does not need to be positioned (random connection), because multiple metal wires in it contact the electrode.
  • Solderless connection allows easy assembly and disassembly.
  • Since the connection is maintained by the reaction force of the silicone rubber, a stable connection can be achieved even in equipment that requires high resistance to vibration and shock.
  • The conductive element is a fine metal wire. It is suitable for the connections that require low resistance, high current carrying capacity, and wiping the electrode.

Specifications

  • Elastomeric interconnector with gold-plated metal wires arranged in low pitch and supported on both sides by insulating silicone rubber.
  • The GB-SUSHI is one type of interconnector, that is supported on one side of insulating silicone rubber. It can be used for connection between parallel electrodes, so contributing to thinner devices.

Introduction video of "Shin-Etsu Inter-Connector"

Dimension and tolerance

Item Unit GB-E type
Pitch P mm 0.05+0.04/-0.01 0.1±0.05 0.2±0.05
Length L mm 2.0~25.0±0.2
50.1~80.0±0.5
120.1~150.0±1.0
200.1~250.0±1.6		 25.1~50.0±0.3
80.1~120.0±0.8
150.1~200.0±1.3
Height H mm 1.0~5.0±0.1　　5.1~10.0±0.15　　10.1~20.0±0.2
Width W mm 1.0~2.4±0.1　　2.5~4.0±0.15
Filament diameter μm 30 40 40

※Special design is available on request.
※HW/2

Outline dimensions

Basic properties

Item Unit Values
Contact resistance ※ Ω ≦0.1
Current carrying capacity mA 500
Insulation resistance (DC 500V) MΩ 1 x 10~{3}≦
Operationg temperature range ºC -25~85

※The test is carried out with Shin-Etsu's own method.

Compression curves

※Sample size
0.1P x 10.0L x 2.0H x 1.0W


※Inner diameter of holder
1.0H x 1.0W

※Sample size
0.1P x 50.0L x 1.0H x 1.0W


※PCB used
2.0P, 1.0mm-width gold-plated electrode

Note

Every item or numerical value indicated herein is measured by Shin-Etsu and out of guarantee.
The quality of the connector, which has been already assembled, is out of guarantee.
Please make sure to see about the purpose/conditions of use and practice your own test. Industrial ownership like patent doesn't guarantee the usage of the connector.
