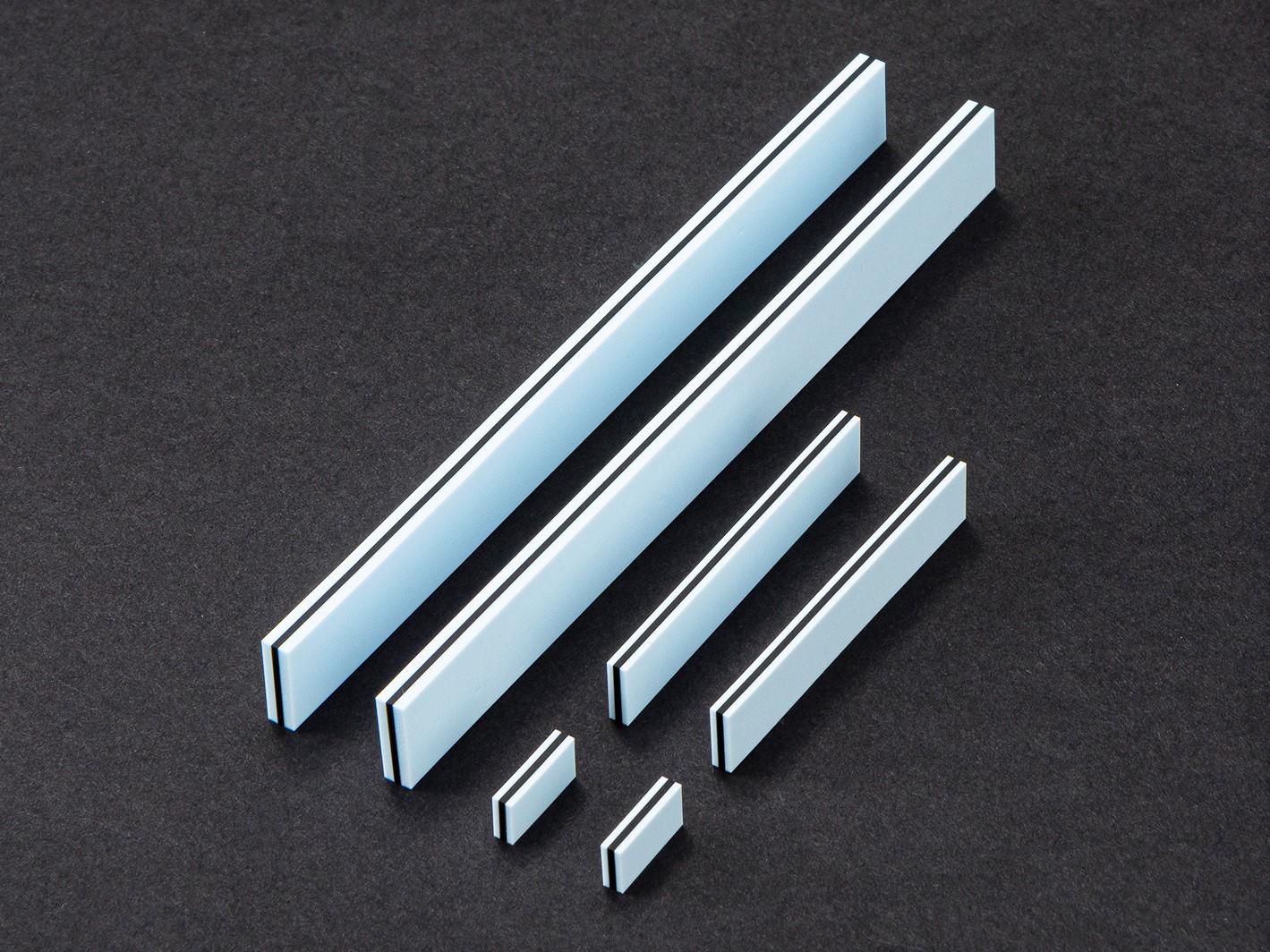

• This is a zebra-type interconnector which consists of conductive silicone rubber with low-resistance.
  • This type is suitable for connection stability, and is used as connector between LCD and printed circuit board or PCB, especially electronic parts that cannot be soldered.



[Industrial field]

Automobile, Information device, Home electric appliance

Performance

Because of arranging conductive silicone rubber and insulated silicone rubber alternately, this type is possible to connect randomly. Both sides of this connector are supported by isolated silicone rubber which has low-hardness.



[Applications]

  • Connection between LCD and PCB (Automobile products, watches,digital cameras, electronic dictionaries, industrial equipments)

Characteristics

  • This is a rubber connector which consists of arranging conductive silicone rubber and insulated silicone rubber alternately are supported on both sides by insulated silicone rubber with low-hardness.
  • Low-resistance silicone rubber is used for conductor.

Specifications

  • Both sides of the rubber connector which consists of arranging conductive silicone rubber and insulated silicone rubber alternately are supported by insulated silicone rubber with low-hardness.

Introduction video of "Shin-Etsu Inter-Connector"

Dimension and tolerance

Item Unit SEC type
Pitch P mm 0.05±0.03
Length L mm 2.0~20.0±0.15
150.1~200.0±0.8

20.1~90.0±0.65%
200.1~300.0±1.0

90.1~150.0±0.6
Height H mm 1.5~5.0±0.1

5.1~20.0+0.15/-0.1
Width W mm 1.5±0.1
2.0±0.1
2.5±0.15

3.0±0.15
3.5±0.15
4.0±0.15

4.5±0.15
5.0±0.15
Width of conductive layer Z mm 0.7±0.05

※H≧W/2

Outline dimensions

Basic properties

Item Component Unit SEC type
Shore hardness A Insulator
Conductor
Edge insulation part (1)		 ISO7619
(type A)		 65~73
60~65
20~25
35~40
Compression set ※ % 15~20
Volume resistivity Insulator
Conductor
Edge insulation part		 Ω/cm 1 x 10~{14}
1.3
1 x 10~{11}
Dielectric breakdown voltage Insulator
Edge insulation part		 kV/mm 23~27
23~27
Insulation resistance
(DC 500V)		 ※ MΩ 1 x 10~{3}≦
Operating temperature range 　 ºC -25~85

(1) The hardness of the support material has alternatives of 20° and 35°.
※The test is carried out with Shin-Etsu's own method.

Compression curves

※Sample size
SEC type
0.05P x 50L x 5H x 2.6W x 0.7Z


※Electrodes used
0.4mm-width gold-plated vs.
no pattern processed gold-plated
No holder

Note

Every item or numerical value indicated herein is measured by Shin-Etsu and out of guarantee.
The quality of the connector, which has been already assembled, is out of guarantee.
Please make sure to see about the purpose/conditions of use and practice your own test. Industrial ownership like patent doesn't guarantee the usage of the connector.
