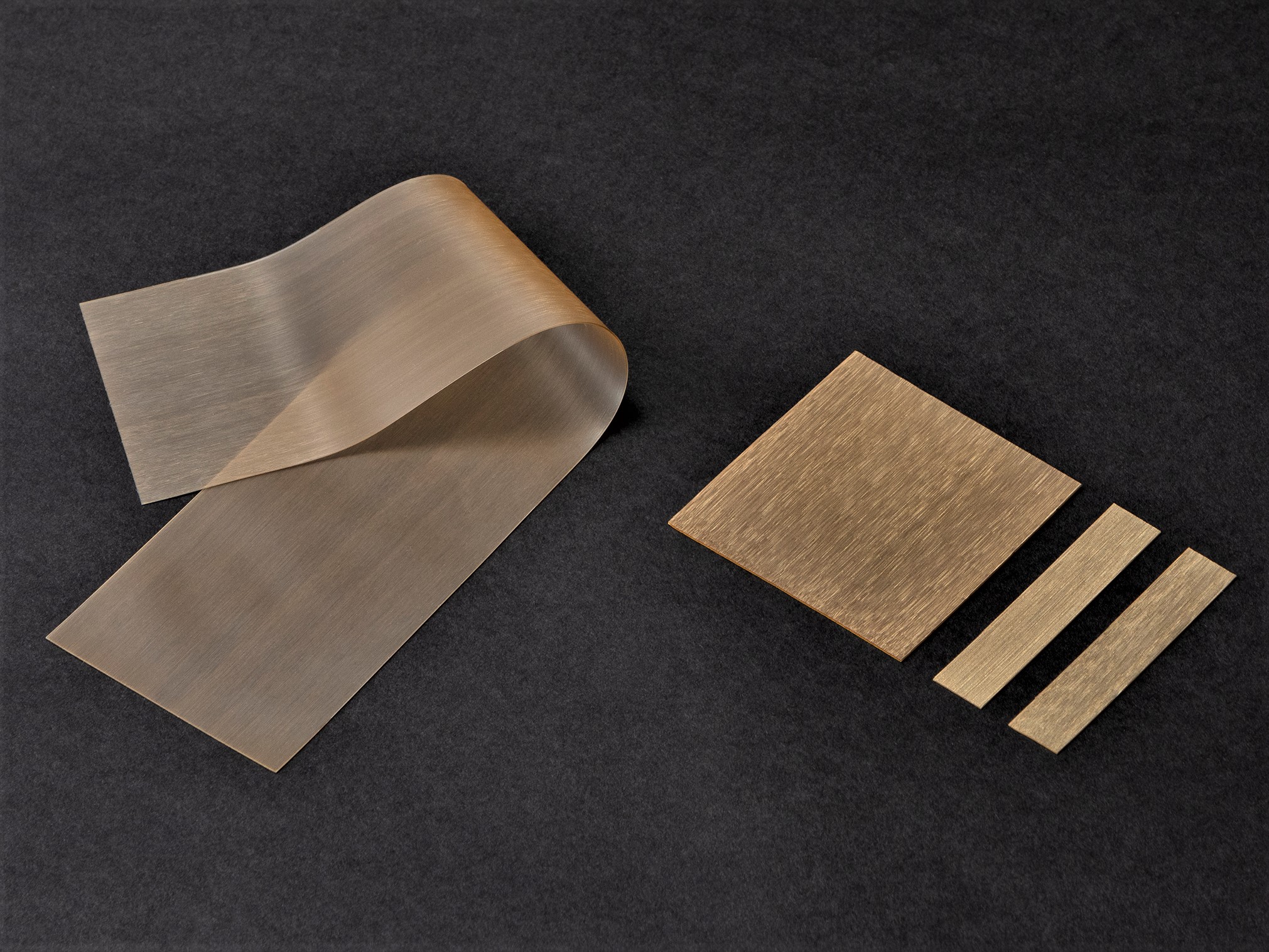

This compression connector is anisotropic conductive sheet type, which consists of silicone rubber and gold-plated metal wires embedded densely into it.



[Industrial field]

Electronic Components, Semiconductor, Information devices, Automobile

Performance

It's suitable for implemention such as connection between substrates because it is possible to set array pitch and thickness according to electrodes.



[Applications]

  • Connection between PCB
  • Connection between devices and PCB
  • Inspection for electrical parts and semiconductor devices

Characteristics

  • It's suitable for implemention such as connection between substrates because it is possible to set array pitch and thickness according to electrodes.

Specifications

  • This compression connector is anisotropic conductive sheet type, which consists of silicone rubber and gold-plated metal wires embedded densely into it.

Dimension and tolerance

Item Units Standard
Pitch (Length direction) P mm 0.05+0.03/-0.01 0.1±0.05 0.20±0.05
Pitch (Width direction) PS mm 0.25±0.05 0.6±0.05
Length L mm 2.0~25.0±0.2 25.1~50.0±0.3
Width W mm 2.0~25.0±0.2 25.1~50.0±0.3
Thickness t mm 0.3~2.5±0.05
Filament diameter μm 30 40 40

※1 Pitch alignment can be custom-made.

※2 Special design is available on request.


Max. size: 200L x 50W
Shin-Etsu Inter-Connector has been registered in European Community, TM No.000299016, and in the United States of America, TM No.2078941.

Outline dimensions

Basic properties

Item Units Values
Contact resistance Ω ≦0.1 (1)
Current carrying capacity mA/electrode 500 (2)
Insulation resistance (DC 500V) MΩ 1 x 10~{3}≦
Operationg temperature range ºC -25~85

(1) The test is carried out with Shin-Etsu's own method.
(2) When10metal wires contact with an electrode.

Compression load-resistance curves

※Sample size:
0.1P x 0.25PS x 0.3t
Electrode pattern 0.15mm x 5.0mm x gold plated PCB

Compression load-compression amount curves

─ GB-Matrix 0.5*0.25PS 0.5t
─ GB-Matrix 0.5*0.25PS 1.0t
─ GB-Matrix 0.1*0.1PS 0.5t※
─ GB-Matrix 0.1*0.1PS 1.0t※



※0.1PS is optional

Current carrying capacity

※Sample size:
0.1P x 0.25PS x 0.3t



 ── 1.0A　── 2.0A　── 3.0A

Note

Every item or numerical value indicated herein is measured by Shin-Etsu and out of guarantee.
The quality of the connector, which has been already assembled, is out of guarantee.
Please make sure to see about the purpose/conditions of use and practice your own test. Industrial ownership like patent doesn't guarantee the usage of the connector.
