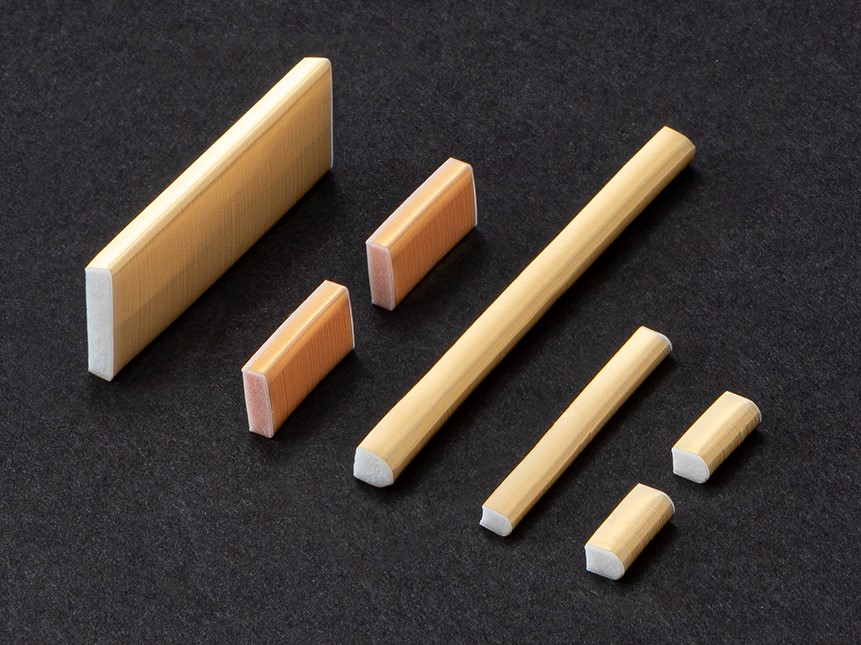

This is an interconnector which consists of U shaped silicone rubber surface with gold-plated metal wires arranged with fine pitch.

This type is suitable for connection stability, and is used as connector between LCD and printed circuit board or PCB, especially electronic parts that cannot be soldered.



[Industrial field]

Automobile, Information device, Home electric appliance

Performance

This type has low-resistance because gold-plated metal wires are arranged with fine pitch as the conductive part. Therefore, it is suitable for connection which needs current capacity. Also, it is possible to connect with low-load because the support material is made of sponge rubber.



[Applications]

  • Connection between devices and PCB
  • Connection between PCB

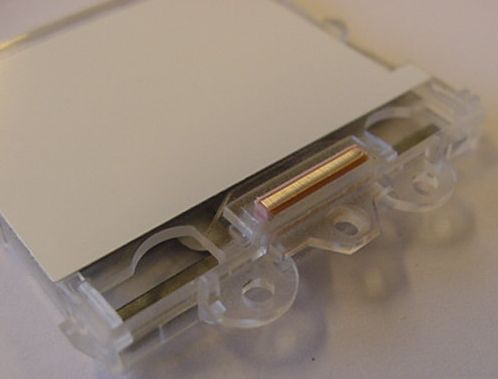

  • Connection between LCD and PCB

Characteristics

  • This type has low-resistance because gold-plated metal wires are arranged with fine pitch at the conductive part. Therefore, it is suitable for connection which needs current capacity.
  • It is possible to connect with low-load because the support material is made of silicone.

Specifications

  • GB-U has the U-shaped insulating sponge silicone rubber surface with gold-plated metal wires arranged at low pitch.

Introduction video of "Shin-Etsu Inter-Connector"

Dimension and tolerance

Item Unit GB-U type GB-UA type
Pitch P mm 0.05+0.03/-0.01 0.1±0.05 0.05+0.03/-0.01 0.1±0.05
Length L mm 3.0~20.0±0.4
20.1~40.0±0.6
40.1~50.0±0.8
50.1~60.0±1.0
60.1~100.0±1.2
100.1~180.0±1.5		 3.0~20.0±0.4
20.1~40.0±0.6
40.1~50.0±0.8
50.1~60.0±1.0
60.1~100.0±1.2
100.1~180.0±1.5
Height H mm 1.6~7.0±0.2
7.1~10.0±0.25		 2.8~7.0±0.2
Width W mm 1.5~4.8±0.2 1.5~3.0±0.2
Filament diameter μm 30 40 30 40

※1＜H/W4
※GB-UB for high handling performance also available
※special orders available on request. Standard tools available.



Please ask us for details.
Shin-Etsu Inter-Connector has been registered in European Community, TM No.000299016, and in the United States of America, TM No.2078941.

Outline dimensions

Basic properties

Item Units Values
Contact resistance ※ Ω ≦0.1
Current carrying capacity mA 500
Insulation resistance (DC 500V) MΩ 1 x 10~{3}≦
Operationg temperature range ºC -25~85

※The test is carried out with Shin-Etsu's own method.
※PCB electrode width: 1.0mm gold plated

Compression load characteristics

※Sample
GB-U type, 0.1P x 10.0L x 3.0H x 3.0W

Conductive resistance characteristics

※Sample
GB-U type, 0.1P x 10.0L x 3.0H x 3.0W


※PCB electrode
1.0mm width (gold plated)

Note

Every item or numerical value indicated herein is measured by Shin-Etsu and out of guarantee.
The quality of the connector, which has been already assembled, is out of guarantee.
Please make sure to see about the purpose/conditions of use and practice your own test. Industrial ownership like patent doesn't guarantee the usage of the connector.
