『Shin-Etsu glass net』

(JIS certification JIS A 5702)
A corrugated sheet that is fashionable and creates a bright space.

『Shin-Etsu glass net』

(JIS certification JIS A 5702)
A corrugated sheet that is fashionable and creates a bright space.

[Industrial field]

Construction, Civil engineering

Performance

[Applications]

Carport

Balcony

etc.

Characteristics

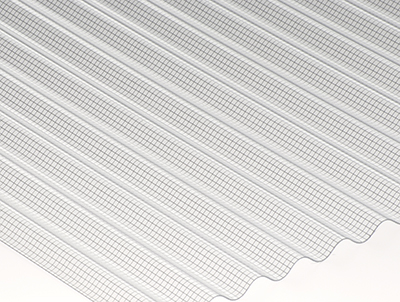

A hard PVC corrugated sheet with a glass net sandwiched in it, which is popular for its elegant fashionability. Shin-Etsu Namiita Glass Net is a safe exterior material that creates a bright space full of taste. It can be used for roof applications (such as warehouses that store non-combustible items) in fireproof areas or semi-fireproof areas.

Specification table

（Unit：mm）

	Color	Thickness	Width	Depth	Number of corrugated waves (reference)	Effective width	Length	Number of packages
32nami Fireproof certified product	Clear Amber Milk	0.9	655	9	20.5	575	1,820 2,120 2,420 2,730 3,030	10

Color Variations

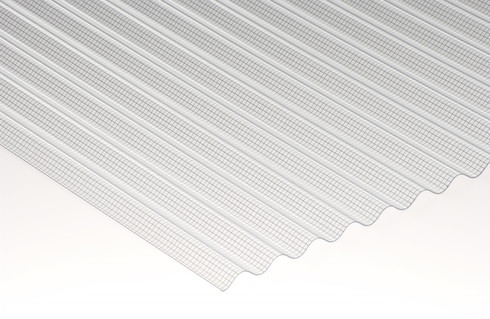

Clear

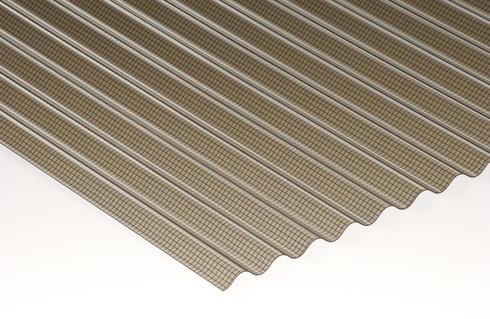

Amber

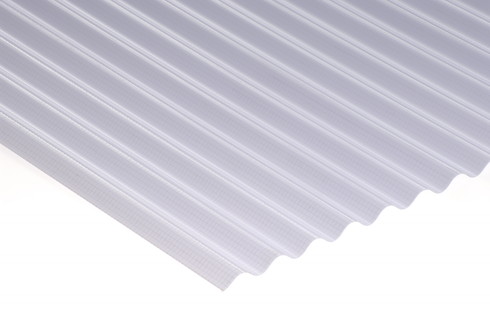

Milk

PVC corrugated board

We have a lineup of Namiita made of Polycarbonate and PVC that makes good use of resin characteristics such as good lighting, light and durable, excellent workability and fashionability. 読む PVC corrugated board

PVC corrugated board

(JIS certification JIS K 6735)
It retains its aesthetic appearance for a long time because it has excellent strength and weather resistance. 読む PVC corrugated board
